Cassegrain Off-Axis Two-Mirror Collimator
Model D100～D150F1000

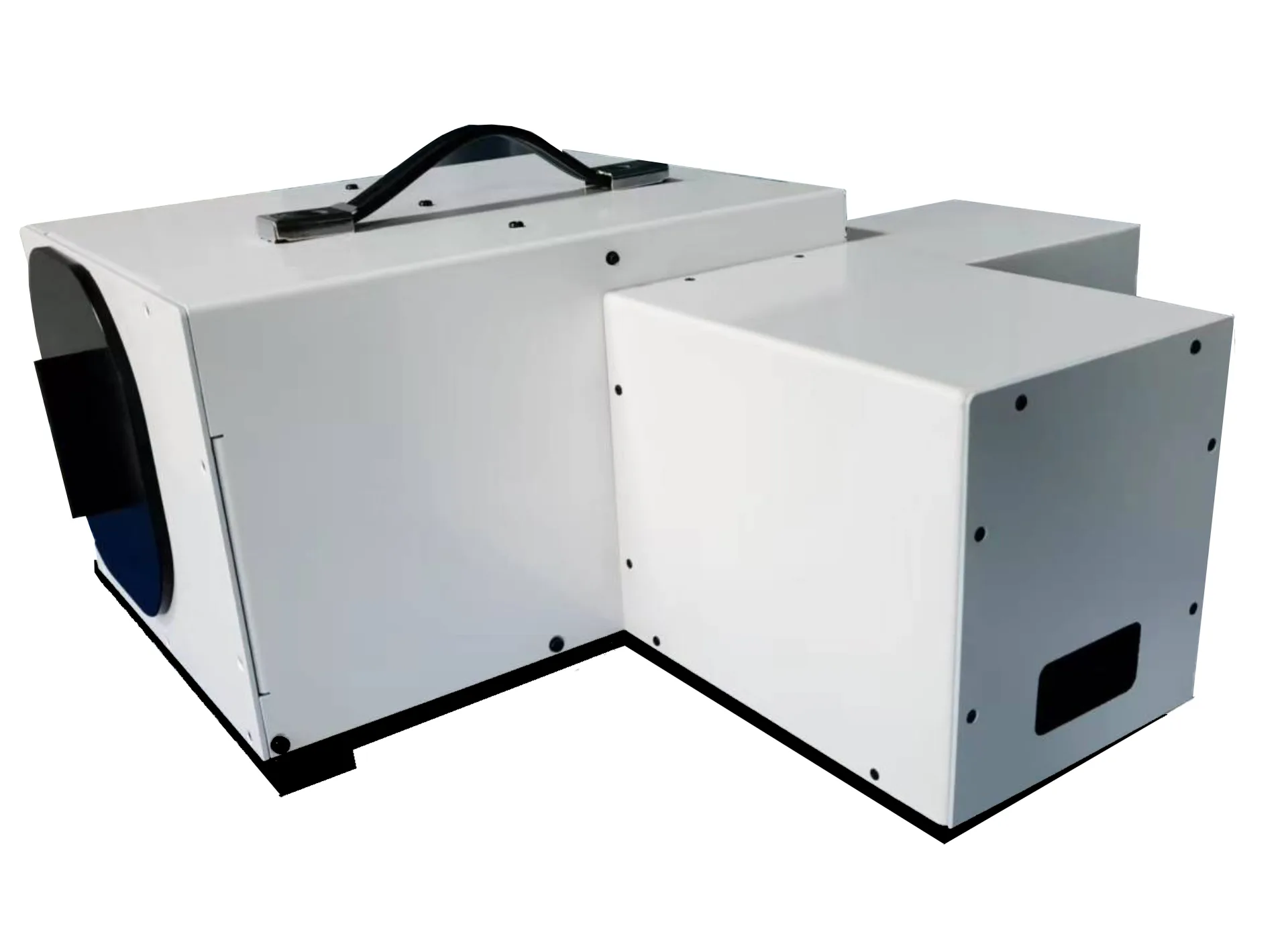

Product Main Image: D100～D150F1000 Model
Technical Parameters
| Item | D100～D150F1000 Model |
|---|---|
| System Structure | Cassegrain Off-Axis Two-Mirror Structure |
| Effective Aperture | Φ100mm～Φ150mm |
| Operating Wavelength | 3～12μm |
| Collimator Focal Length | 1000±15mm |
| Field of View | ≤±0.1° |
| Output Parallelism | ≤±5″ |
| Central Field Wave Aberration | RMS ≤ λ/10 (λ=632.8nm) |
| Temperature Adaptability | 20℃±2 ℃ |
| Overall Dimensions | 294x351x210mm |
| Total Weight | ≤10kg |
